Static Seals
TYPE
PRODUCT
TYPE
DESCRIPTION
MATERIALS
TEMPERATURE [°C]
min. – max.
SPEED
[m/s]
PRESSURE
[MPA]
max.
DIMENSIONS
(mm)
TECH.
INFO

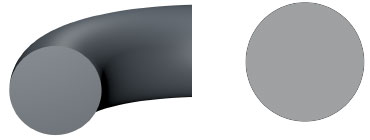

O-Ring
OR-10
-
NBR, FKM, EPDM, VMQ, HNBR, FFKM, FVMQ, FEPM, ACM, CR, SBR, CSM, ECO, BR, IIR, IR, AU, EU, NR
-
-
-
-
DIN 3771-1, ISO 3601-1, SMS 1586, JIS B 2401, AS 568, BS 1806, BS 4518, NF T47-501, R 0 to R 27, R 28 to R 88

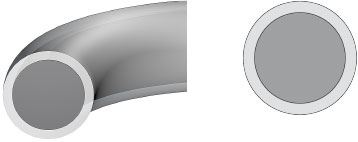

O-Ring
OR-11
FEP encapsulated
FKM / FEP encapsulated
-
-
-
-
VMQ / FEP encapsulated
-
-
-
-
-
O-Ring
OR-12
PTFE encapsulated
PTFE / Elastomer core
-
-
-
-
-

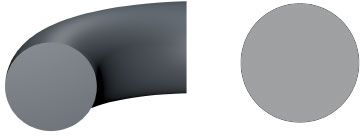

O-Ring
OR-13
made from O-Ring cord, glued
NBR, FKM, EPDM, VMQ
-
-
-
-
-
O-Ring
OR-14
made from O-Ring cord, vulcanised
NBR, FKM, EPDM, VMQ
-
-
-
-
-

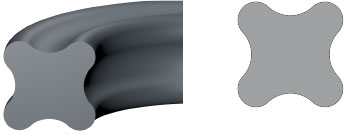

X-Ring
XR-10
-
NBR, FKM,
-
-
-
-
AS 568

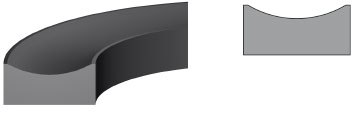

Back up ring
BR-10
concave
NBR, FKM
-
-
-
-
-
Back up ring
BR-11
solid
PTFE, POM, PEEK, NBR, FKM, AU,
-
-
-
-
-

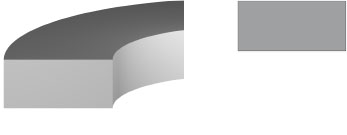

Back up ring
BR-12
split
PTFE, POM, PEEK, NBR, FKM, AU,
-
-
-
-
-
Back up ring
BR-13
spiral
PTFE
-
-
-
-
-
Flat ring / Washer
WR-10
moulded
NBR, FKM, EPDM, VMQ,
-
-
-
-
-
Flat ring / Washer
WR-11
tube cut
NBR, FKM, EPDM, VMQ,
-
-
-
-
-
Flat ring / Washer
WR-12
stamped
NBR, FKM, EPDM, VMQ,
-
-
-
-
-

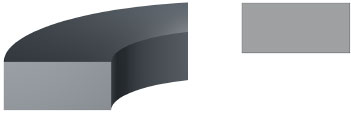

Flat ring / Washer
WR-13
lathe cut
NBR, FKM, EPDM, VMQ,
-
-
-
-
-

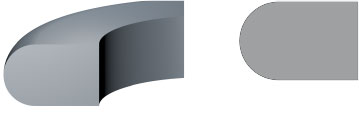

D-Ring
WR-14
-
NBR, FKM, EPDM, VMQ,
-
-
-
-
-

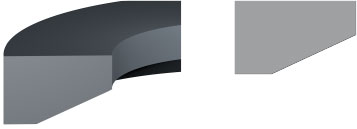

Profile seal acc. DIN 3869
WR-15
acc. to DIN 3869
NBR, FKM,
-
-
-
-
DIN 3869

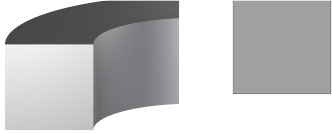

Square ring
SR-10
-
NBR, FKM, EPDM, VMQ,
-
-
-
-
-

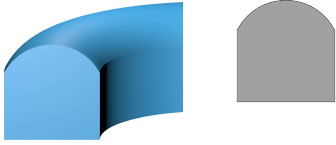

Hygienic seal
HS-10
Standard design
FDA 177.2600
NBR, EPDM, VMQ, FKM, HNBR, PTFE,
-
-
-
-
DIN 11851

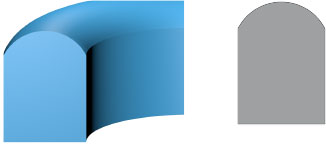

Hygienic seal
HS-11
High version
FDA 177.2600
NBR, EPDM, VMQ, FKM, HNBR, PTFE,
-
-
-
-
-

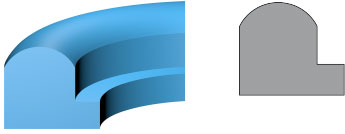

Hygienic seal
HS-12
with flange
FDA 177.2600
NBR, EPDM, VMQ, FKM, HNBR, PTFE,
-
-
-
-
-

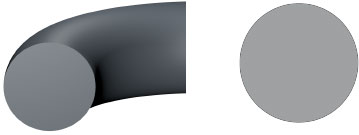

O-Ring cord
EP-10
extruded
NBR, FKM, EPDM, VMQ,
-
-
-
-
-

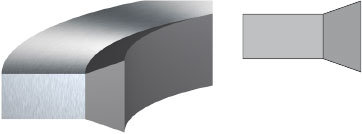

Bonded seal
BS-10
standard design
NBR, FKM,
-
-
-
-
-

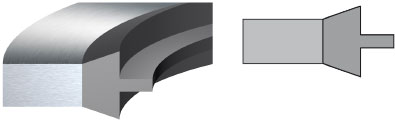

Bonded seal
BS-11
self centring
NBR, FKM,
-
-
-
-
-

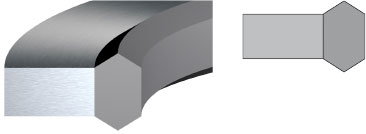

Bonded seal
BS-14
self centring
NBR, FKM,
-
-
-
-
-

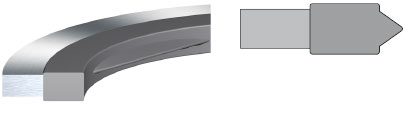

Bonded seal
BS-15
self centering
NBR, FKM,
-
-
-
-
-

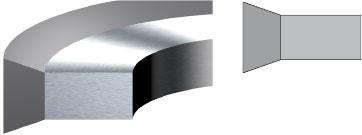

Bonded seal
BS-13
outside sealing
NBR, FKM,
-
-
-
-
-

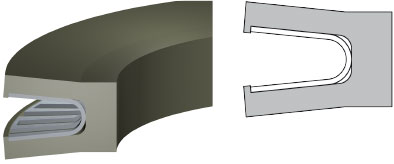

Flange seal
FS-10
outside sealing
PTFE compounds
V-spring stainless steel
-
-
-
-
-

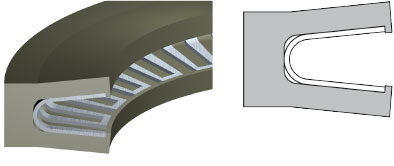

Flange seal
FS-11
inside sealing
PTFE compounds
V-spring stainless steel
-
-
-
-
-

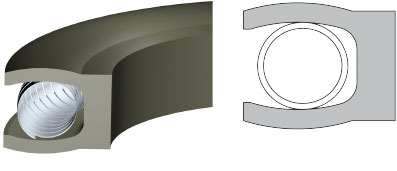

Flange seal
FS-12
outside sealing
PTFE compounds
helical spring stainless steel
-
-
-
-
-

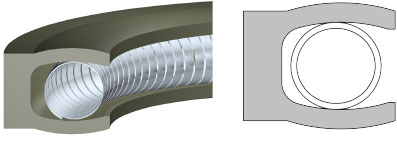

Flange seal
FS-13
inside sealing
PTFE compounds
helical spring stainless steel
-
-
-
-
-

On request available in other materials
